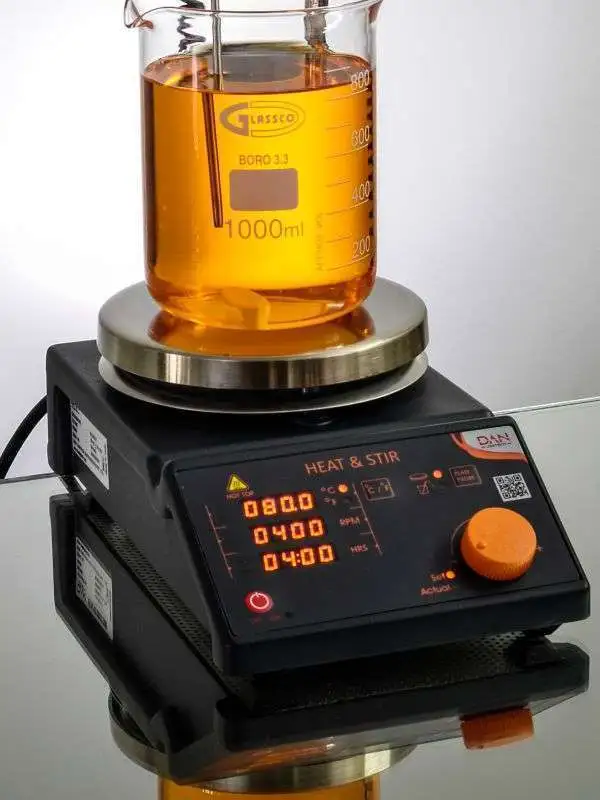

Magnetic Stirrer with Hotplate 145mm Dia Digital DAN
610.DNDG.01
- Powerful 650W Heater Heat Evenly, rapidly & given result quickly
- PU Coated Aluminum Alloy Molded Construction
- Auto Power “ON” possible
- Chemically resistant keypad
- Even heat distribution at faster rate
- Thermal insulation for cool body operation
- Digital set up temperature controller with independent LED display
- Set safety cut-off for maximum temperature limit for top plate or probe
- Installed with double PT sensors for fail safe operating mechanism
- Only with Battery for domestic
- Inclusive PT 100 temperature sensor probe
- Audible alarm at time cycle end for safety and ease of unsupervised operation
- Top plate Ø 145 mm to assist beaker upto 2000 ml & Adapter.
- Compatible for use with all major brands top assemblies 1 Cavity, 3 Cavitiesor Multiple Cavities
- Digital setup of time with independent LED display
- Selection of plate and probe temperature
- Error code display for failures
- Digital setup of RPM with independent LED display
- Count-up indication of minutes and hours
- Single multi-turn intelligent knob Operation
- Selection of Celsius and Fahrenheit
- High magnetic strength
Technical Specification
- Heating Plate Material: Aluminum Alloy with Ceramic Coating
- Dimension of Heating Plate: Ø 145 mm
- Three display windows for: Temp., RPM and Time
- Speed Range: 50-1500 RPM
- Maximum Stirring bar Length: upto 80mm bar (at lower speed)
- Temperature Range: Ambient to 350°C
- Adjustable safety cut off: 50-400°C
- Control accuracy of PT 100: ± 1K
- Weight of body: 3.1 kgs
- Dimension of Hot Plate: 273x160x102mm
- Permissible ambient Temp.: 5-40°C
- Permissible relative moisture: 80%
- RS 232 Interface: Yes (For Programming)
- Weight of Capacity: 20Lts
- IP Class: 32
Non-returnable
₹31,500.00
Choose Quantity :
Product Information
