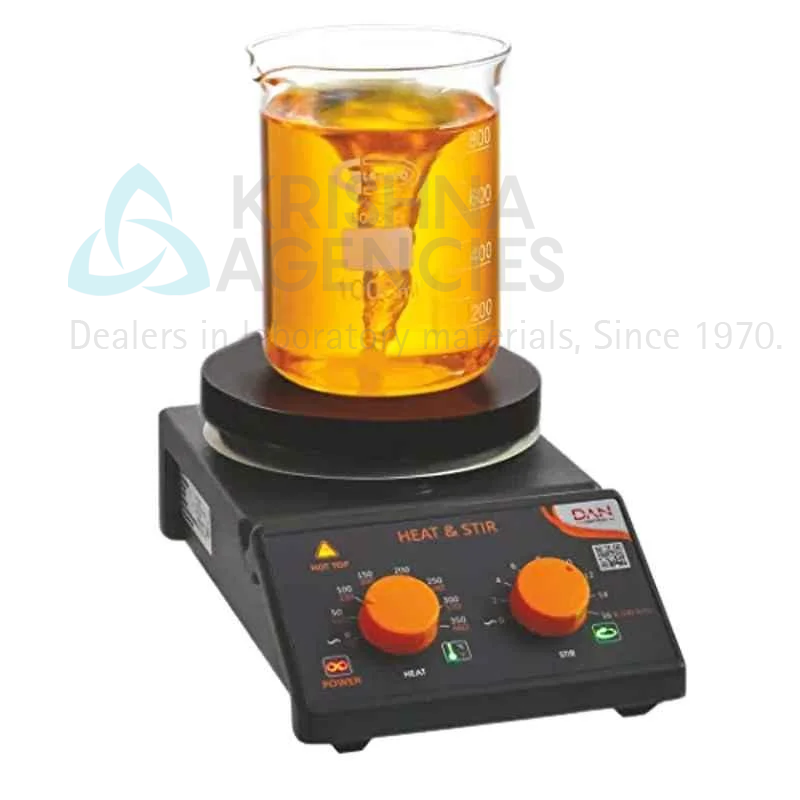

Magnetic Stirrer with Hot Plate Analogue 150mm DAN
710.DNAG.01
- PU Coated Aluminium Alloy Moulded Construction
- Easy temperature & Stir controls
- Installed with Safety PT sensor for fail safe operation.
- Hot top indicator for temperatures above 50°C.
- Large top plate to assist beakers upto 2000 ml.
- High magnetic strength.
- Electronic variable speed control with Knob for display.
- Knob for regulating variable temperature.
- Heat reach Indicator, To ensure you correct temperature of plate surface.
- Stirring & temperature indicator
- Error indicators for heat & Stir function inbuilt trouble shoot
- 650Watts, 230Volt, 50Hz
Non-returnable
₹17,400.00
₹18,875.00
Choose Quantity :
Product Information
Product Details
Technical Specification:
Heating Mantle Material: Stainless Steel 304 Grade with Ceramic Coating/Aluminum Alloy with Ceramic Coating
Dimension of heating plate: Ø150 (For 710DNAG)
Speed range: 50-1600 RPM
Maximum stirring bar Length: Can use upto 80 mm bar (at lower speed)
Temperature Range: Ambient to 350°C approx
Dimensions of hot plate body: 273x160x102mm
Weight of body: 3.0 kgs
Permissible ambient Temperature: 5- 40 °C
Permissible relative moisture: 80%
Weight of Capacity: 20Lts
IP Class: 22
Included Accessory:
850.800.02 Magnetic Stirring bar 35 mm x 8 mm
Dimension of heating plate: Ø150 (For 710DNAG)
Speed range: 50-1600 RPM
Maximum stirring bar Length: Can use upto 80 mm bar (at lower speed)
Temperature Range: Ambient to 350°C approx
Dimensions of hot plate body: 273x160x102mm
Weight of body: 3.0 kgs
Permissible ambient Temperature: 5- 40 °C
Permissible relative moisture: 80%
Weight of Capacity: 20Lts
IP Class: 22
Included Accessory:
850.800.02 Magnetic Stirring bar 35 mm x 8 mm
