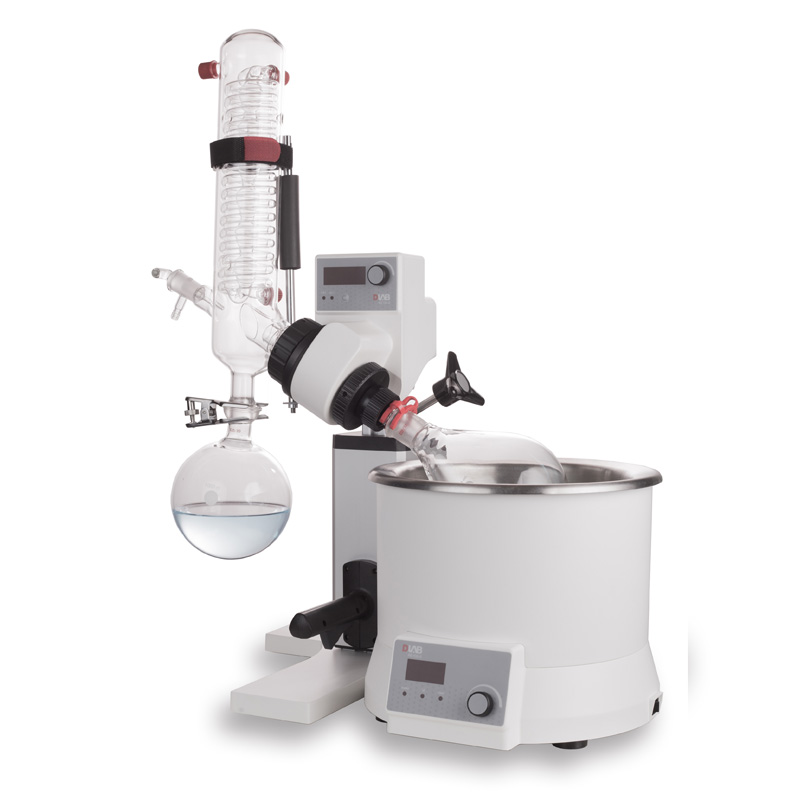

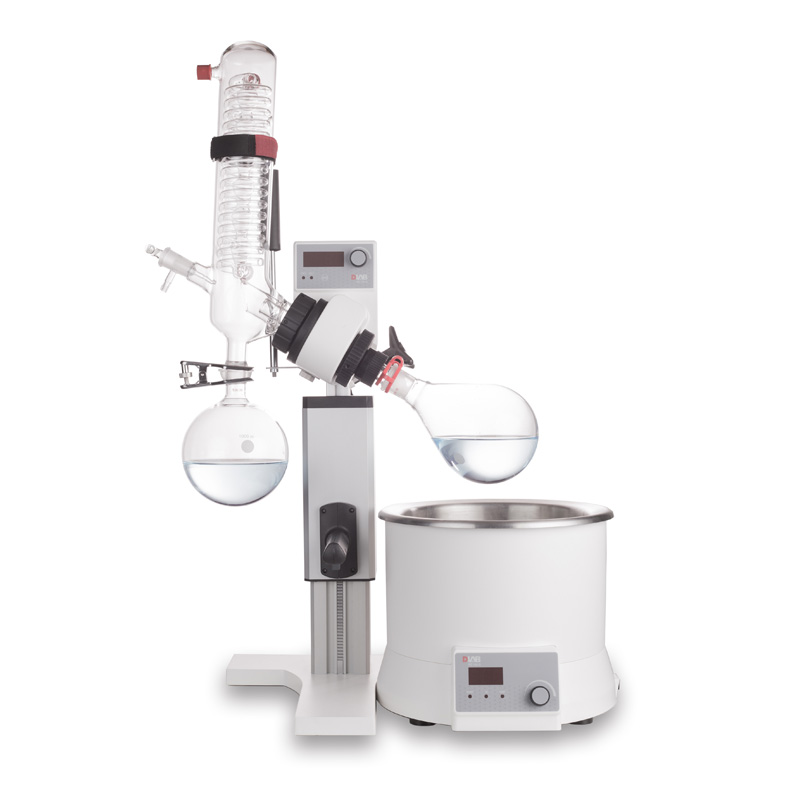

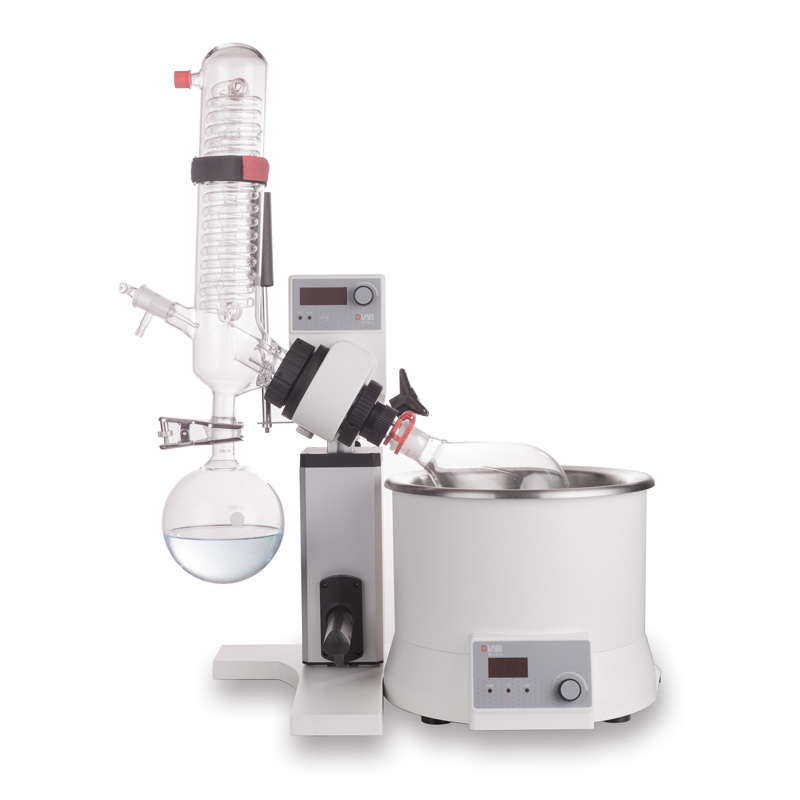

Rotary Evaporator with Glassware Vertical includes condenser (1200cm²,1000ml)
Non-returnable
₹229,000.00 ₹247,500.00
RE100-S
Standard Lab Model
LED Digital Rotary Evaporator

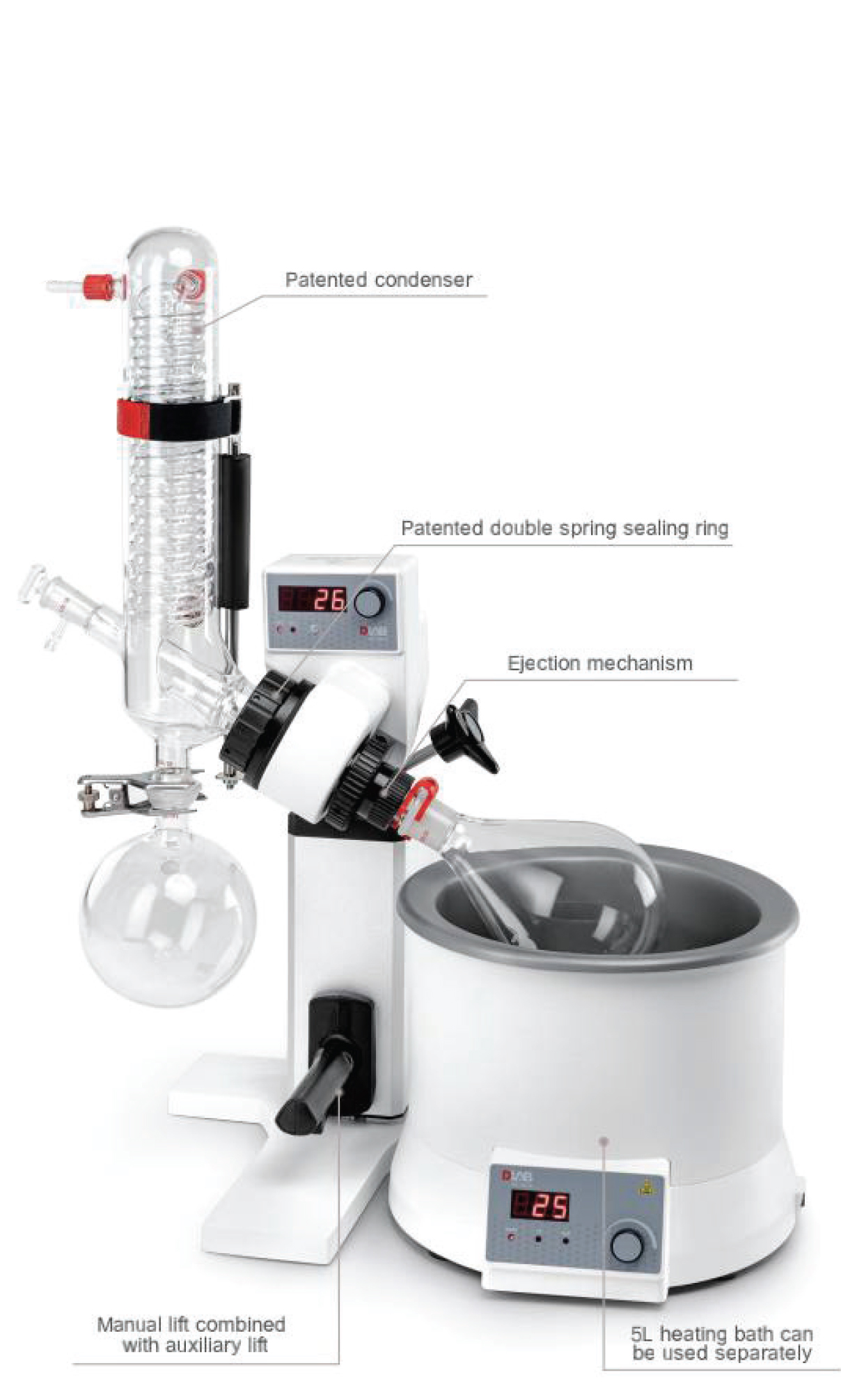

Features

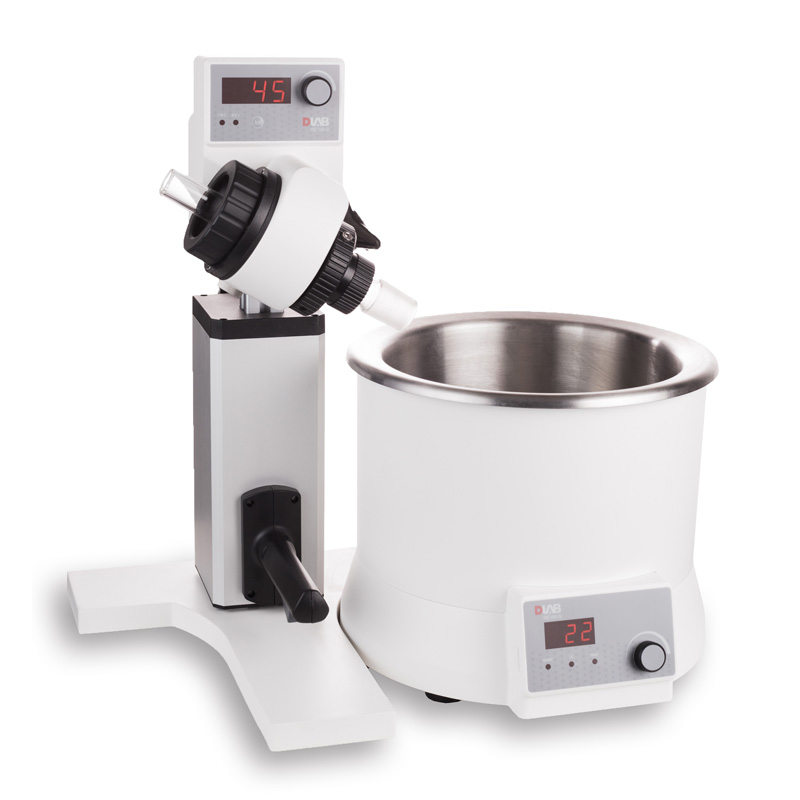

- 5L heating bath with a wide temperature range (room temp.to 180°C), independent temperature control,make it can be used separately.
- Water/oil heating mode can be changed only through a switch.
- Manual lift combined with auxiliary lift for precise positioning of the glassware.
- PID control ensures high temperature accuracy at ±1C (water)
- Overheating protection temperature at 220°C
- Boil-dry protection, automatically power off if heated without water/oil in the heating bath.
- Speed ranges from 20 to 200rpm, timing interval operation in clockwise and anticlockwise directions for the drying process.

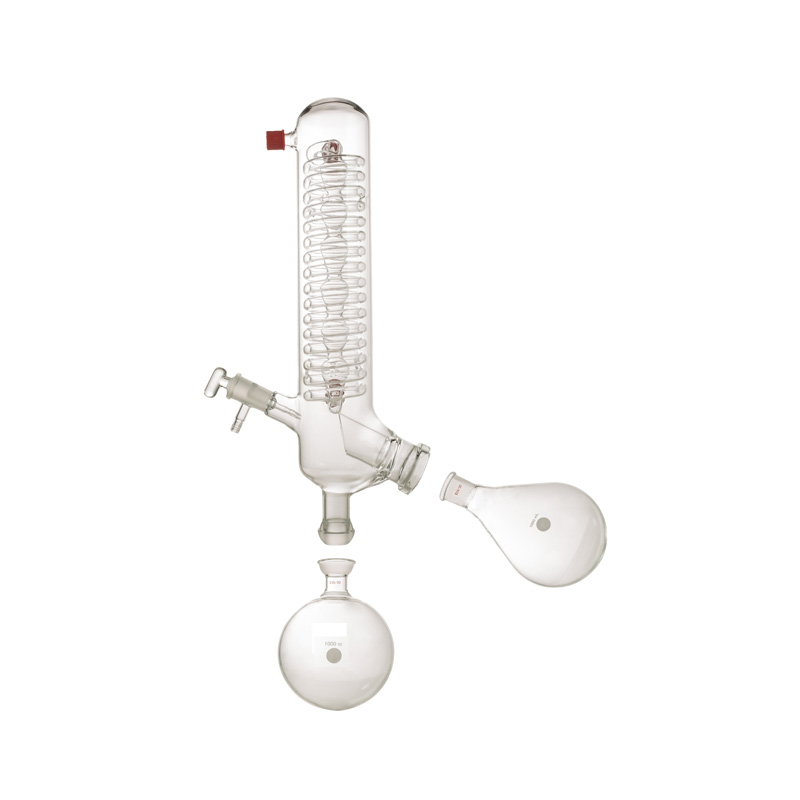

- Patented condenser (cooling surface 1200/1700cm² for selection), double helix condensing tube +center circular arc design to speed up the flow rate of liquid with excellent cooling effect.
- Ejection mechanism ensures easy exchange of evaporating flask

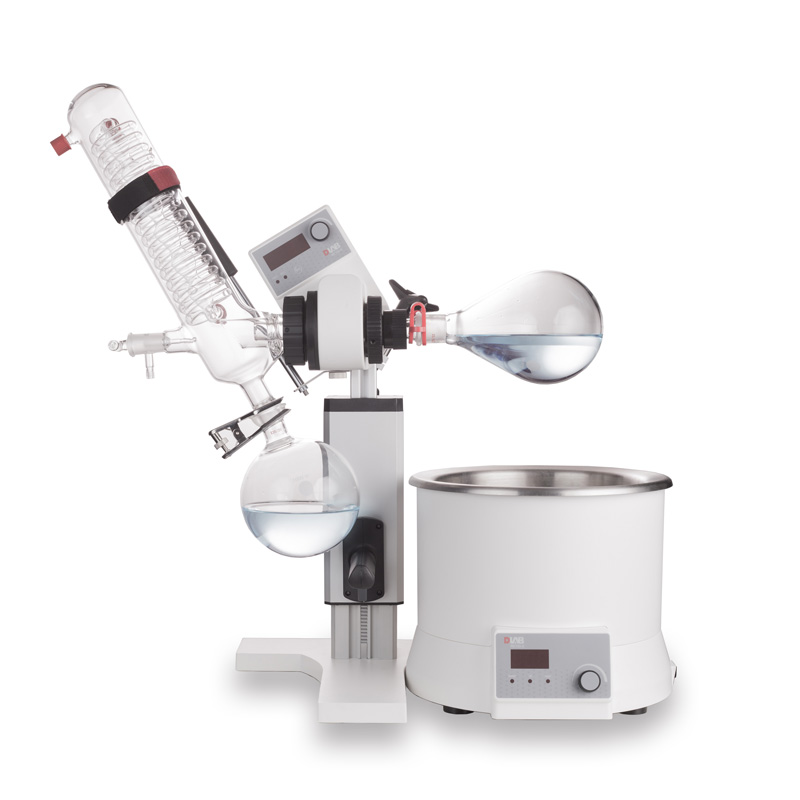

- Adjustable immersion angle
- Patented double spring sealing ring which is made of PTFE provides an excellent sealing performance
Product Details
Specifications
| Motor Type | Brushless DC motor |
| Speed Range | 20-200rpm |
| Display | LED (speed, temperature, time) |
| Heating Temperature Range | Room temp. to 180°C |
| Control Accuracy | Water: ±1°C and Oil: ±3°C |
| Stroke Displacement | Manual 110mm + auxiliary100mm |
| Timer | Yes |
| Time Setting Range | 1~999s |
| USB Interface | Yes |
| Voltage/Frequency | 100~120/200~240V 50/60 Hz |
